When deploying Portainer in production to manage remote edge devices, exposing it to the internet often raises security concerns.

Firewall ACLs alone are not sufficient when edge devices use dynamic IP addresses. You cannot reliably restrict access by source IP.

A stronger approach is Mutual TLS (mTLS).

mTLS requires both:

• The server to present a trusted certificate
• The client to present a trusted certificate

Only devices with certificates issued by your trusted Certificate Authority (CA) can connect.

This guide walks through enabling mTLS for Portainer Edge.

For simplicity, Portainer will act as the CA in this example. In production, use your corporate CA.

Step 1: Generate a Root Certificate Authority

SSH into your Portainer server and run:

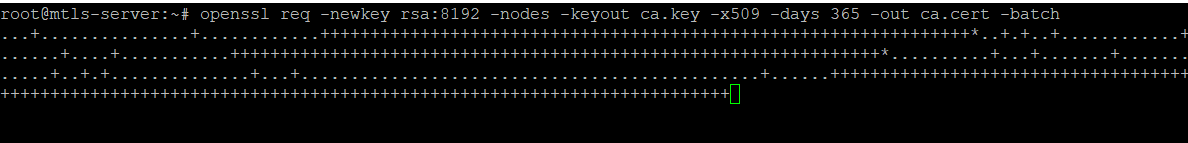

openssl req -newkey rsa:8192 -nodes -keyout ca.key -x509 -days 365 -out ca.cert -batch


This creates:

• ca.key
• ca.cert

Step 2: Generate the Server Certificate

openssl genrsa -out server.key 4096

openssl req -new -key server.key -out server.csr -batch

openssl x509 -req -days 365 \
-in server.csr \
-CA ca.cert \
-CAkey ca.key \
-CAcreateserial \
-out server.cert \
-extfile <(printf "subjectAltName=DNS:<YOURFQDNHERE>\nextendedKeyUsage=serverAuth")


Replace <YOURFQDNHERE> with the fully qualified domain name of your Portainer server.

Step 3: Generate the Client Certificate

This certificate will be used by Edge Agents.

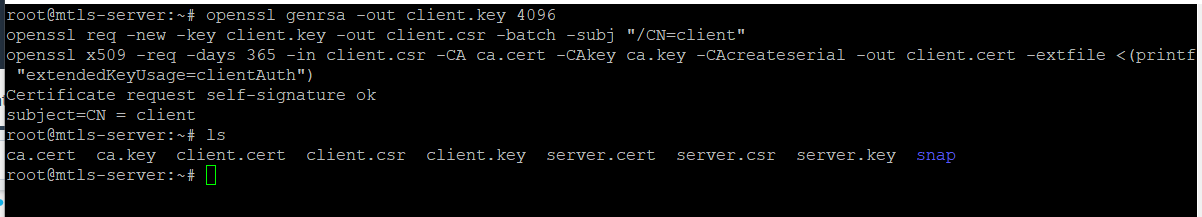

openssl genrsa -out client.key 4096

openssl req -new -key client.key -out client.csr -batch -subj "/CN=edge-client"

openssl x509 -req -days 365 \
-in client.csr \
-CA ca.cert \
-CAkey ca.key \
-CAcreateserial \
-out client.cert \
-extfile <(printf "extendedKeyUsage=clientAuth")


Copy these files somewhere safe:

• ca.cert
• client.cert
• client.key

Step 4: Redeploy Portainer with mTLS enabled

You must redeploy Portainer to enable TLS options. You can reuse your existing Portainer database volume.

Example Docker deployment:

docker run --name portainer -d \
-p 8000:8000 \
-p 9443:9443 \
--restart=always \
-v /var/run/docker.sock:/var/run/docker.sock \
-v portainer_data:/data \
-v /root:/certs \
portainer/portainer-ee:latest \
--sslcert /certs/server.cert \
--sslkey /certs/server.key \
--sslcacert /certs/ca.cert


This:

• Enables HTTPS on 9443
• Requires client certificates signed by your CA

Portainer is now protected by mTLS.

Step 6: Deploy Edge Agent with mTLS

On the edge device:

mkdir /certs


Copy into /certs:

• ca.cert
• client.cert
• client.key

Now deploy:

PORTAINER_EDGE_ID=$(hostname)

docker run -d \
-v /var/run/docker.sock:/var/run/docker.sock \
-v /var/lib/docker/volumes:/var/lib/docker/volumes \
-v /:/host \
-v /certs:/certs \
-v portainer_agent_data:/data \
--restart always \
-e EDGE=1 \
-e EDGE_ID=$PORTAINER_EDGE_ID \
-e EDGE_KEY=<YOUR_EDGE_KEY> \
-e EDGE_INSECURE_POLL=0 \
--name portainer_edge_agent \
portainer/agent:2.14.2 \
--sslcert /certs/client.cert \
--sslkey /certs/client.key \
--sslcacert /certs/ca.cert


Check logs:

docker logs -f portainer_edge_agent


You should see:

• Successful connection
• Placeholder endpoint ID assigned

Step 7: Approve the device

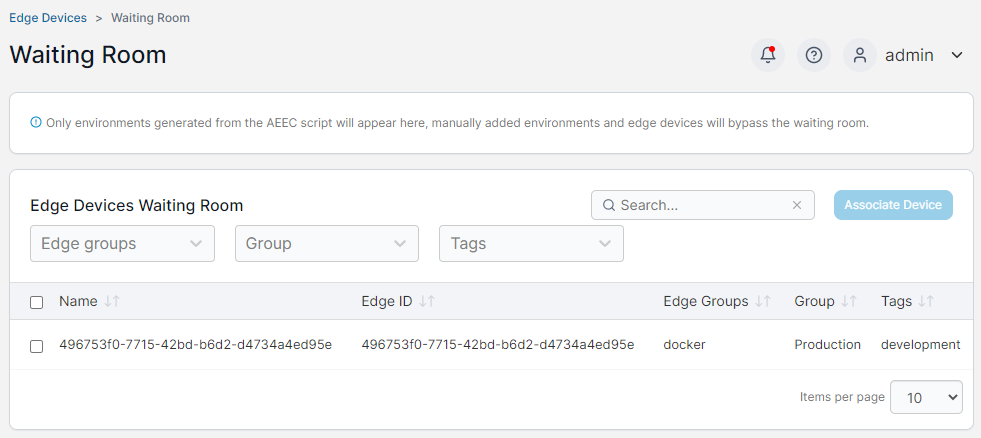

In Portainer go to Waiting Room in the Edge compute menu and associate the device by selecting the check box and selecting Associate Device.

Your Portainer instance is now:

• Internet accessible
• Protected by mTLS
• Accepting connections only from agents presenting valid CA-issued client certificates

All other requests are rejected during TLS negotiation.

Production recommendations

• Use your corporate CA instead of self-signing
• Issue unique client certificates per device
• Use shorter certificate lifetimes with rotation
• Protect private keys carefully

mTLS adds strong cryptographic identity verification to Portainer Edge deployments and is suitable for high-security environments where IP allow-listing is not viable.

‍
